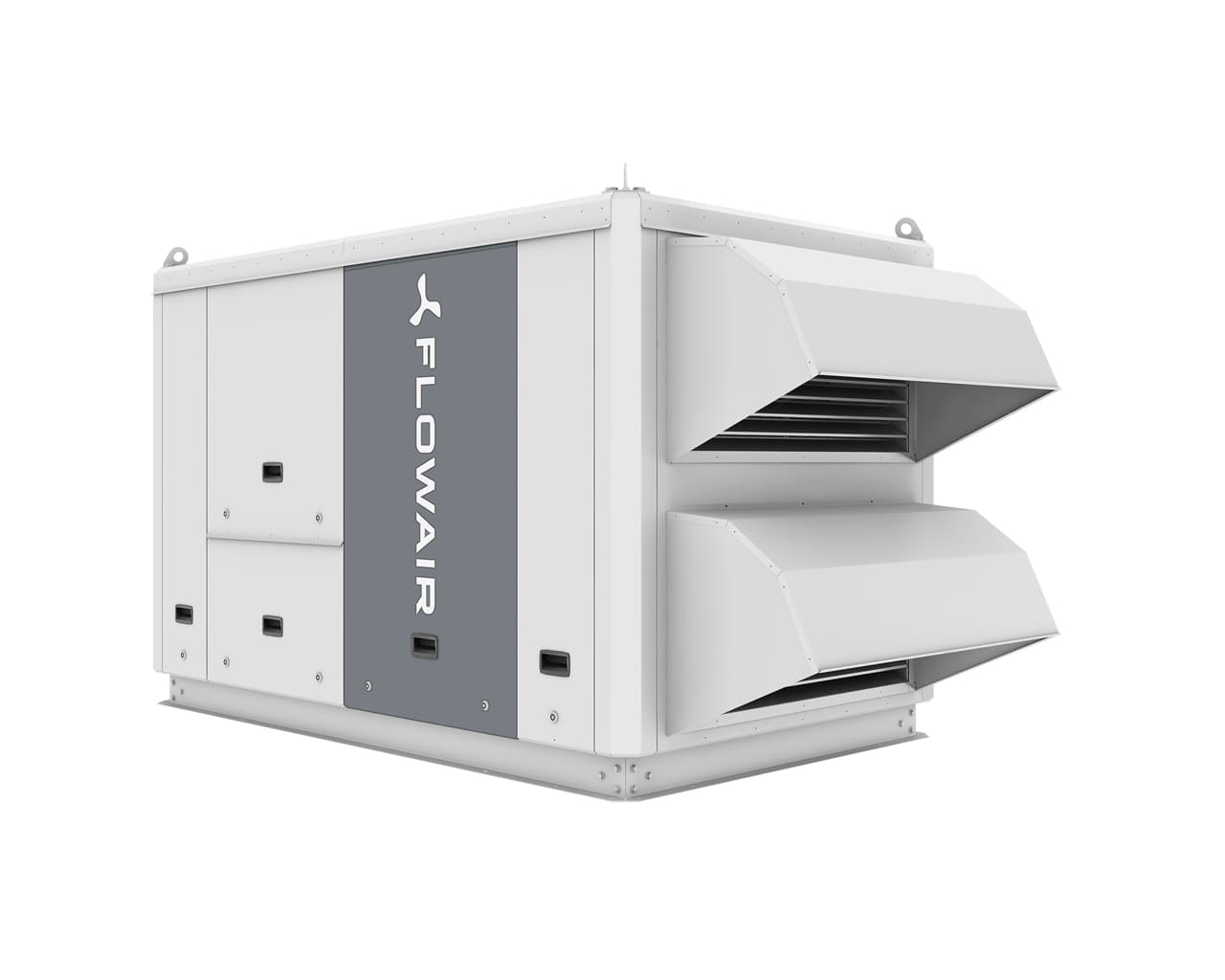

Cube R8 with swirl diffuser

Brief characteristics:

The compact Cube R8 allows heating and ventilation with heat recovery. In addition, a base with roof transition and integrated swirl diffuser with actuator is available for the Cube R8. The rotary heat exchanger, heater and Siemens Climatix automation system are contained in a single housing. The use of high-efficiency heat recovery and EC fans means that the unit already meets the Ecodesign requirements, which will be tightened from 2018. Cube R8 units can be equipped with a water heater with circulation pump and 3-way valve, an electric heater or a gas heater.

Versions available:

Cube R 8 - W / NW

1 2 3 4

1 heat recovery: R - rotary exchanger

2 nominal unit capacity: 8-21 [ths m3/h].

3 possible versions:

N - without additional heater

W - with water exchanger

E - with electric heater

G - with gas heater

4 base with roof penetration and swirl diffuser

The compact design, handles and transport apertures and self-supporting base facilitate transport and installation, while 50 mm thick mineral wool insulation reduces heat loss and noise emissions.

Purpose:

Cube R8 units with swirl diffuser are ideal for all buildings where efficient ventilation with heat recovery is required without the need for ductwork. Decentralised ventilation and heating is ideal for buildings such as warehouse or production halls and distribution centres.

Control:

As standard, each Rooftop Cube is equipped with an advanced Siemens Climatix controller with a room controller and a complete measurement, control and alarm system.

find out more

Technology / Innovation / Benefits:

EC fans - electricity savings and the ability to infinitely adjust the performance of the duct system.

Rotary heat exchanger - built inside the unit, without the need for an external module, ensures efficient heat recovery in a compact design.

Roof base with roof penetration and vortex diffuser - allows the unit to be sited and air to be supplied directly to the room without the need for ductwork.

Transport handles - located at the top of the unit, they allow rapid lifting without the need for a crosshead.

Housing - 50mm mineral wool insulation translates into quiet operation and minimised heat loss.

Cube R8

Brief characteristics:

The compact Cube R8 units enable heating and ventilation with heat recovery. In addition, a base with roof transition and integrated swirl diffuser with actuator is available for the Cube R8. The rotary heat exchanger, heater and Siemens Climatix automation system are contained in a single housing. The use of high-efficiency heat recovery and EC fans means that the unit already meets the Ecodesign requirements, which will be tightened from 2018. Cube R8 units can be equipped with a water heater with circulation pump and 3-way valve, an electric heater or a gas heater.

Versions available:

Cube R 8 - W / NW

1 2 3 4

1 heat recovery: R - rotary exchanger

2 nominal unit capacity: 8,000 m3/h

3 possible versions:

N - without additional heater

W - with water exchanger

E - with electric heater

G - with gas heater

4 base with roof penetration and swirl diffuser

The compact design, handles and transport apertures and self-supporting base facilitate transport and installation, while 50 mm thick mineral wool insulation reduces heat loss and noise emissions.

Purpose:

The wide range of types combined with the various installation options and high discharge pressures guarantee numerous application possibilities. Cube units are ideal for shopping malls and logistics centres, industrial facilities, public buildings as well as petrol stations or discount stores.

Control:

As standard, each Rooftop Cube is equipped with an advanced Siemens Climatix controller with a room controller and a complete measurement, control and alarm system.

find out more

Technology / Innovation / Benefits:

EC fans - electricity savings and the ability to infinitely adjust the performance of the duct system.

Rotary heat exchanger - built inside the unit, without the need for an external module, ensures efficient heat recovery in a compact design.

Roof base with roof penetration and vortex diffuser - allows the unit to be sited and air to be supplied directly to the room without the need for ductwork.

Transport handles - located at the top of the unit, they allow rapid lifting without the need for a crosshead.

Housing - 50mm mineral wool insulation translates into quiet operation and minimised heat loss.

Cube 20-160

Brief characteristics:

The compact Cube 20-160 units enable comprehensive thermal air treatment: cooling, heating and ventilation with heat recovery. The chiller, rotary heat exchanger, heater and Siemens Climatix automation system are all contained in a single housing. The use of highly efficient heat recovery and EC fans means that the units already meet the Ecodesign requirements, which will be tightened from 2018. Cube 20 -160 units can be equipped with a water heater with circulating pump and 3-way valve, an electric heater, reversible heat pump functionality with electric heater or a gas heater.

Versions available:

Cube 20 - R W

1 2 3

1 nominal cooling capacity: 20-160 [kW].

2 heat recovery: R - rotary exchanger

3 possible versions:

N - without additional heater

W - with water exchanger

E - with electric heater

EHP - with reversible heat pump function and electric heater

G - with gas heater

The compact design, handles and transport apertures and self-supporting base facilitate transport and installation, while 50 mm thick mineral wool insulation reduces heat loss and noise emissions.

Purpose:

The wide range of types combined with the various installation options and high discharge pressure guarantee numerous application possibilities. Cube units are ideal for shopping malls and logistics centres, industrial facilities, public buildings and also gas stations and discount stores. In addition, the use of an inverter compressor in the Cube 20 makes it ideal for offices and all kinds of multi-room facilities.

Control:

As standard, each Rooftop Cube is equipped with an advanced Siemens Climatix controller with a room controller and a complete measurement, control and alarm system.

find out more

Technology / Innovation / Benefits:

Refrigeration system: the use of inverter compressors, tandem compressors or multi-circuit systems makes it possible to adapt the cooling capacity to the current demand.

EC fans - electricity savings and the ability to infinitely adjust the performance of the duct system.

Rotary heat exchanger - built inside the unit, without the need for an external module, ensures efficient heat recovery in a compact design.

Roof base with roof penetration and vortex diffuser - allows the unit to be sited and air to be supplied directly to the room without the need for ductwork.

Transport handles - located at the top of the unit, they allow rapid lifting without the need for a crosshead.

Housing - 50mm mineral wool insulation translates into quiet operation and minimised heat loss.

Cube 20 and 40 with swirl diffuser

Brief characteristics:

The compact Cube 20 and Cube 40 enable comprehensive thermal air treatment: cooling, heating and ventilation with heat recovery. In addition, a base with a roof penetration and integrated swirl diffuser with actuator is available. The chiller, rotary heat exchanger, heater and Siemens Climatix automation system are contained in a single housing. The use of highly efficient heat recovery and EC fans means that the units already meet the Ecodesign requirements, which will be tightened from 2018. The Cube 20 and Cube 40 can be equipped with a water heater with circulation pump and 3-way valve, an electric heater, reversible heat pump functionality with electric heater or a gas heater.

Versions available:

Cube 20 - R W / NW

1 2 3 4

1 nominal cooling capacity: 20-160 [kW].

2 heat recovery: R - rotary exchanger

3 possible versions:

N - without additional heater

W - with water exchanger

E - with electric heater

EHP - with reversible heat pump function and electric heater

G - with gas heater

4 base with roof penetration and swirl diffuser

The compact design, handles and transport apertures and self-supporting base facilitate transport and installation, while 50 mm thick mineral wool insulation reduces heat loss and noise emissions.

Purpose:

The wide range of types combined with the various installation options and high discharge pressure guarantee numerous application possibilities. Cube units are ideal for shopping malls and logistics centres, industrial facilities, public buildings and also gas stations and discount stores. In addition, the use of an inverter compressor in the Cube 20 makes it ideal for offices and all kinds of multi-room facilities.

Control:

As standard, each Rooftop Cube is equipped with an advanced Siemens Climatix controller with a room controller and a complete measurement, control and alarm system.

find out more

Technology / Innovation / Benefits:

Refrigeration system: The use of an inverter compressor or tandem compressors makes it possible to adapt the refrigerating capacity to the current demand.

EC fans - electricity savings and the ability to infinitely adjust the performance of the duct system.

Rotary heat exchanger - built inside the unit, without the need for an external module, ensures efficient heat recovery in a compact design.

Roof base with roof penetration and vortex diffuser - allows the unit to be sited and air to be supplied directly to the room without the need for ductwork.

Transport handles - located at the top of the unit, they allow rapid lifting without the need for a crosshead.

Housing - 50mm mineral wool insulation translates into quiet operation and minimised heat loss.
