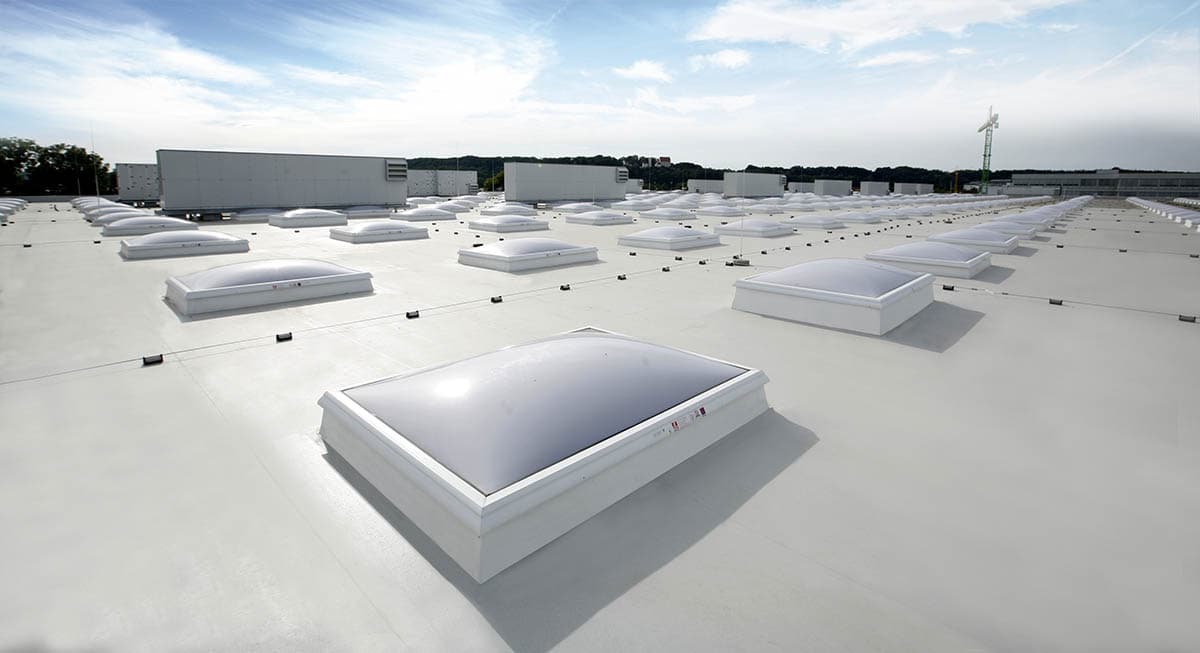

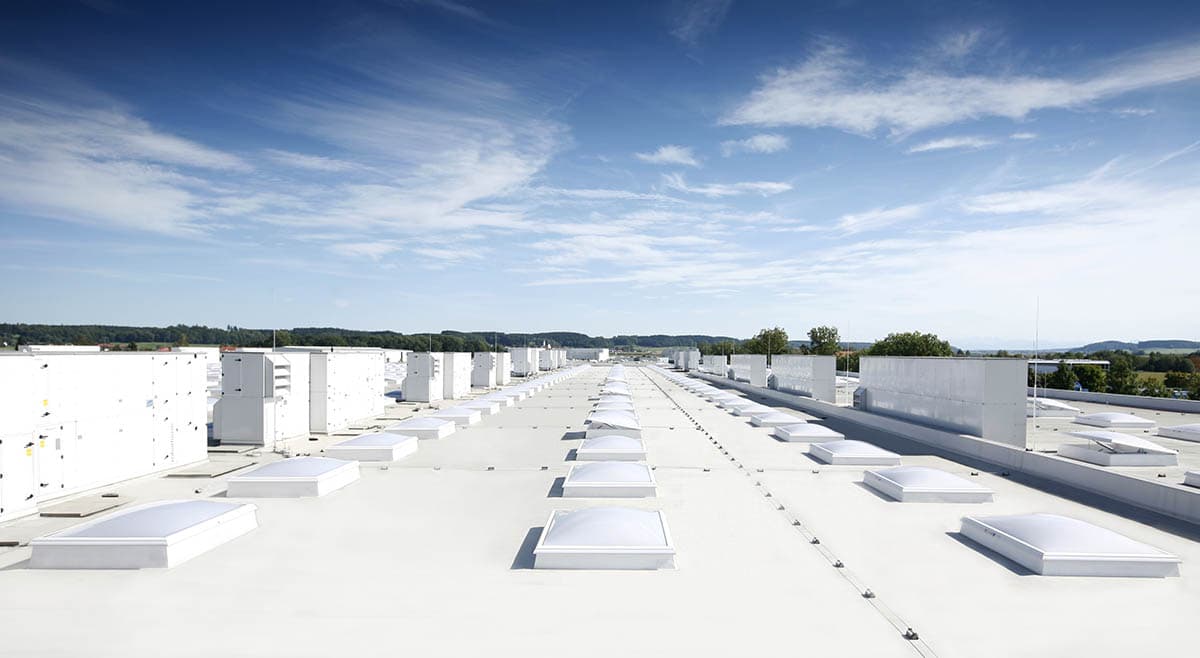

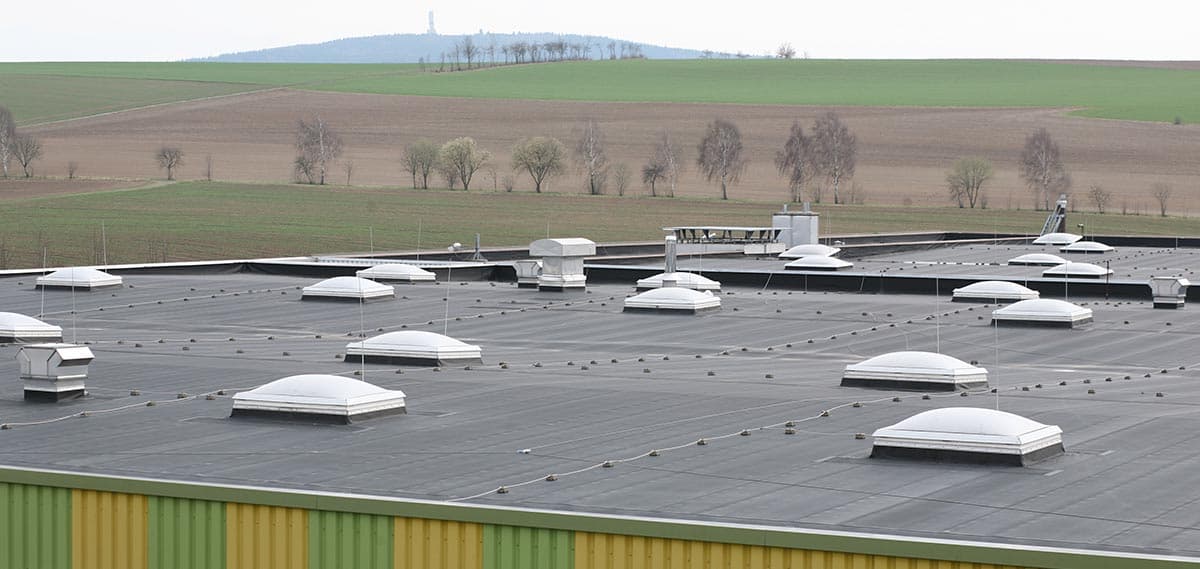

LAMILUX Rooflight Dome F100

ENERGY EFFICIENCY

• The CI system's F100 skylight dome fulfils all the requirements of the EnEV 2014 standard.
• Fully thermally insulated GRP (glass fibre reinforced polyester resin) base with U-value of 0.9 W/(m²K)
• Ideal thermal connection (e.g. thermally insulated foot flange)
• Completely thermal bridge-free design for optimised U-values and reduced risk of condensation
• Improved environmental balance: A comprehensive environmental product declaration in accordance with ISO 14025 and EN 15804 (EPD module A1-D) is available for the CI System's F100 rooflight dome

STABILITY

• NEW: World's first skylight dome with tested water tightness in heavy rain and storms (DRI 3.0 m²/s - at reference size 120 x 120 cm)
• Tested and classified according to EN 1873:2014 (the first European product standard for skylight domes) - e.g. in terms of its ability to take up wind and snow loads
• SAFETY AND SMOKE AND HEAT EXTRACTION SYSTEM (RWA)
• Preventive fire protection: Fulfils the requirements of DIN 18234 (prevention of fire spread on the roof without additional measures (e.g. gravel ballast))
• Meets the requirements of EN 12101-2 for smoke and heat extraction units
• Improved sound insulation and protection against driving rain
• Are you looking for the CI System F100 skylight dome as a smoke and heat extraction unit (RWG)? This is the place to get the information you need.

COMFORT

• NEW: Our CI System F100 skylight dome is BIM-Ready - download at bimobject.com

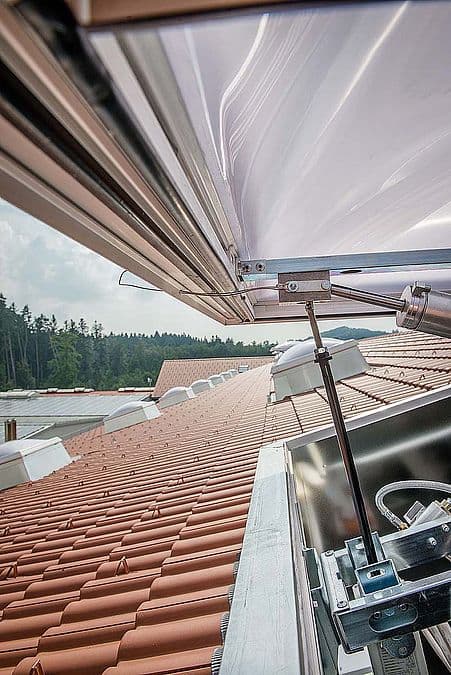

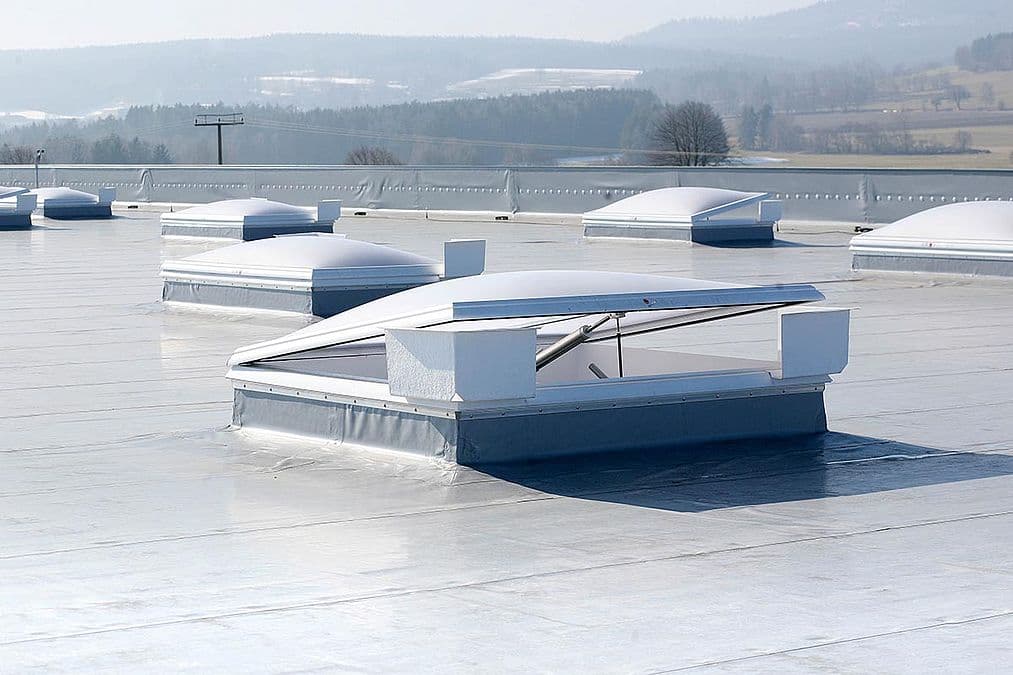

• The skylight dome can also have a venting function - the fixed (non-opening) skylight can be retrofitted with venting accessories at any time.

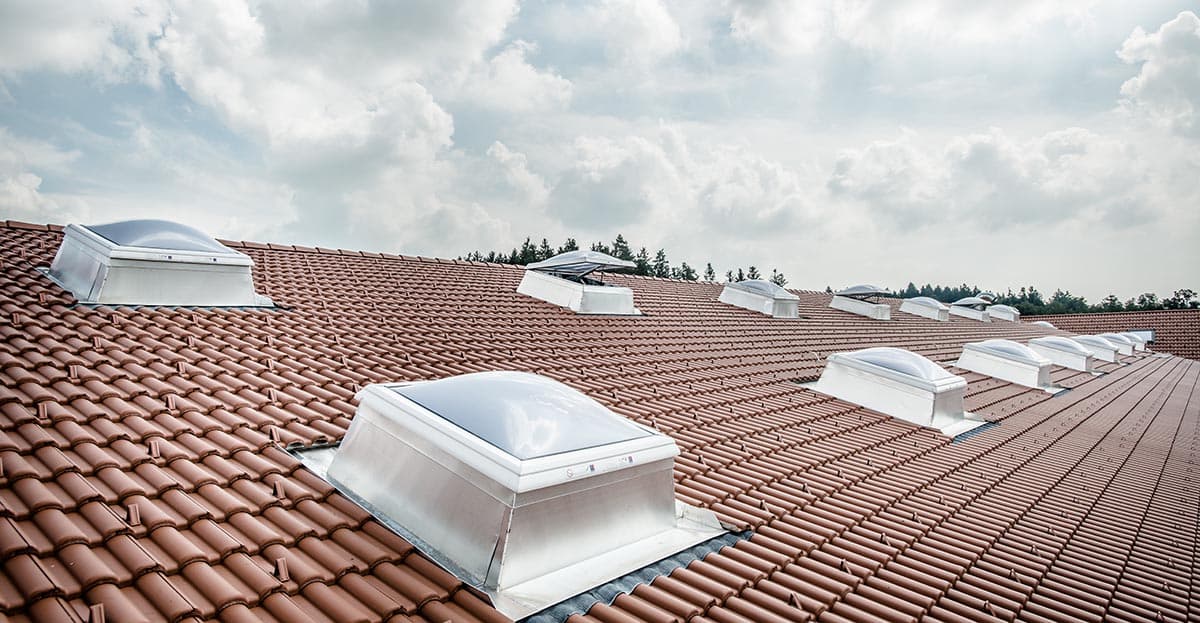

• Safe and easy installation in various types of roof and roofing systems
• Alternatively available: Skylight upstands in aluminium and sheet steel

SKYLIGHT DOME F100 ROUND VERSION EQUIPMENT

• Available in fixed (non-opening) or 24 V vented versions
• Glazing of your choice (double/triple acrylic, double acrylic + polycarbonate )
• Available diameters: 60 cm, 80 cm, 90 cm, 100 cm, 120 cm, 150 cm, 180 cm
• Base heights : 30 cm, 50 cm, 70 cm
• For information on our skylight domes in the round variant, please contact our team
