Aquastic system

Insulation and resistance to water and moisture

An advanced thermal insulation system, vapour-permeable, resistant to water absorption, moisture and dirt build-up, supported by Double Dry and Fibre Force technologies.

System features:

• Water vapour permeability and hydrophobicity
• Resistant to biological contaminants such as fungi and algae
• Flexible and durable
• Resistant to thermal stress and cracking
• Excellent application properties
• Colours: NCS, RAL, Nature colour

Approvals:

• ETA 09/0014 of 30/06/2023.

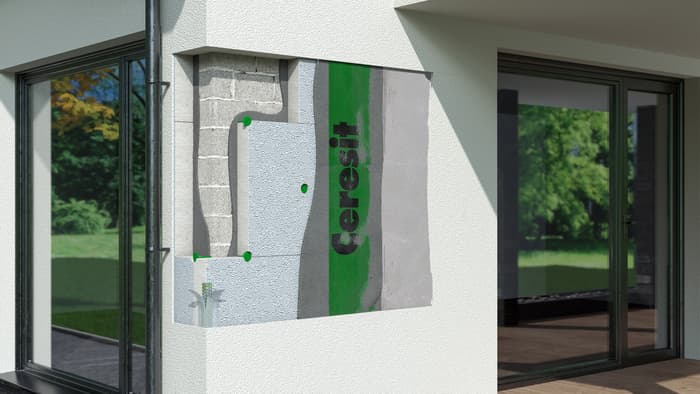

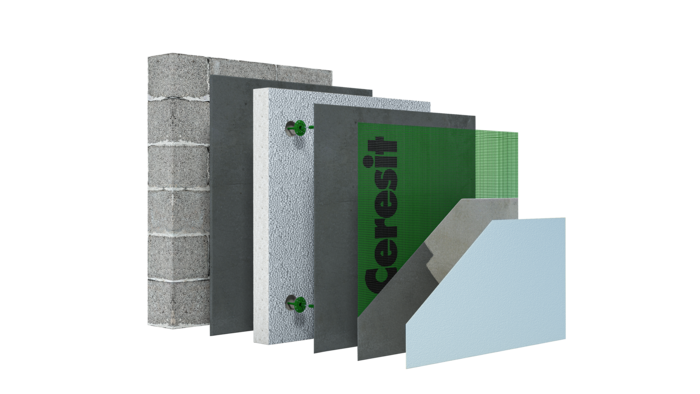

System components:

1 Fixing*: Ceresit CT 83 Strong Fix adhesive mortar or Ceresit CT 85 Flex adhesive and reinforcing mortar, plastic anchors or steel core anchors classified according to ETAG 014 requirements, the number of fasteners and their positioning should be determined by the architect, based on the analysis of the substrate and load calculations.

Insulating material: EPS boards classified according to EN 13163, up to 42 cm thick.

3. reinforced layer*: Ceresit CT 85 Flex adhesive mortar and Ceresit CT 325 glass fibre mesh.

4. priming paint: Ceresit CT 16 Priming paint.

5. Plaster: Ceresit CT 174, CT 175 Aquastatic silicate-silicone plaster.

Paint: Ceresit CT 48 Silicone Self Clean, silicone paint; Ceresit CT 49 Nanosilicone Reno, nanosilicone paint.

* Optionally, CT80 covered by Ceresit Ceretherm Universal ETA documents can be used as an adhesive and plaster mortar.
